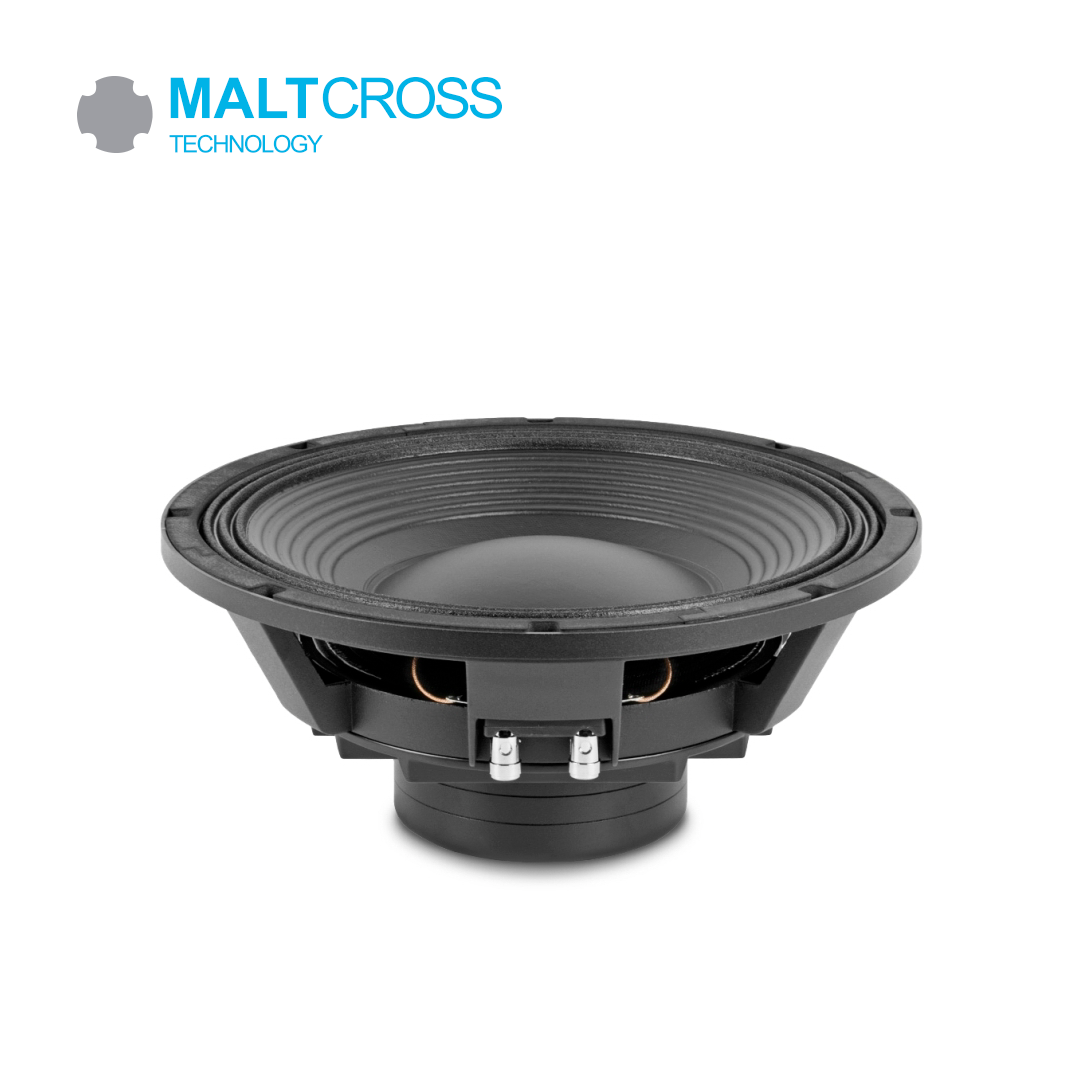

12P1000/Nd PARLANTE 12″ 1800W NEODIMIO 8OHM «BEYMA»

12P1000/Nd PARLANTE 12″ 1800W NEODIMIO 8OHM «BEYMA»

KEY FEATURES

• Power handling: 900 WAES
• High sensitivity: 96 dB (1W / 1m)
• FEA optimized neodymium magnetic circuit
• Forced air convection circuit for low power compression
• 4” DUO technology voice coil
• Weatherproof treatment for both sides of the cone
• Double Conex spider technology
• Extended controlled displacement: Xmax ± 8 mm
• 52 mm peak-to-peak excursion before damage

TECHNICAL SPECIFICATIONS

• Nominal diameter: 300 mm 12 in
• Rated impedance: 8 Ω
• Minimum impedance: 6,5 Ω
• Power capacity 1: 900 WAES
• Program power 2: 1.800 W
• Sensitivity: 96 dB 1W / 1m @ ZN
• Frequency range: 50 – 2.000 Hz
• Recom. enclosure vol.: 20 / 60 l 0,7 / 2,2 ft3
• Voice coil diameter: 101,6 mm 4 in
• Bl factor: 23,5 N/A
• Moving mass: 0,100 kg
• Voice coil length: 21 mm
• Air gap height: 12 mm
• Xdamage (peak to peak): 52 mm
