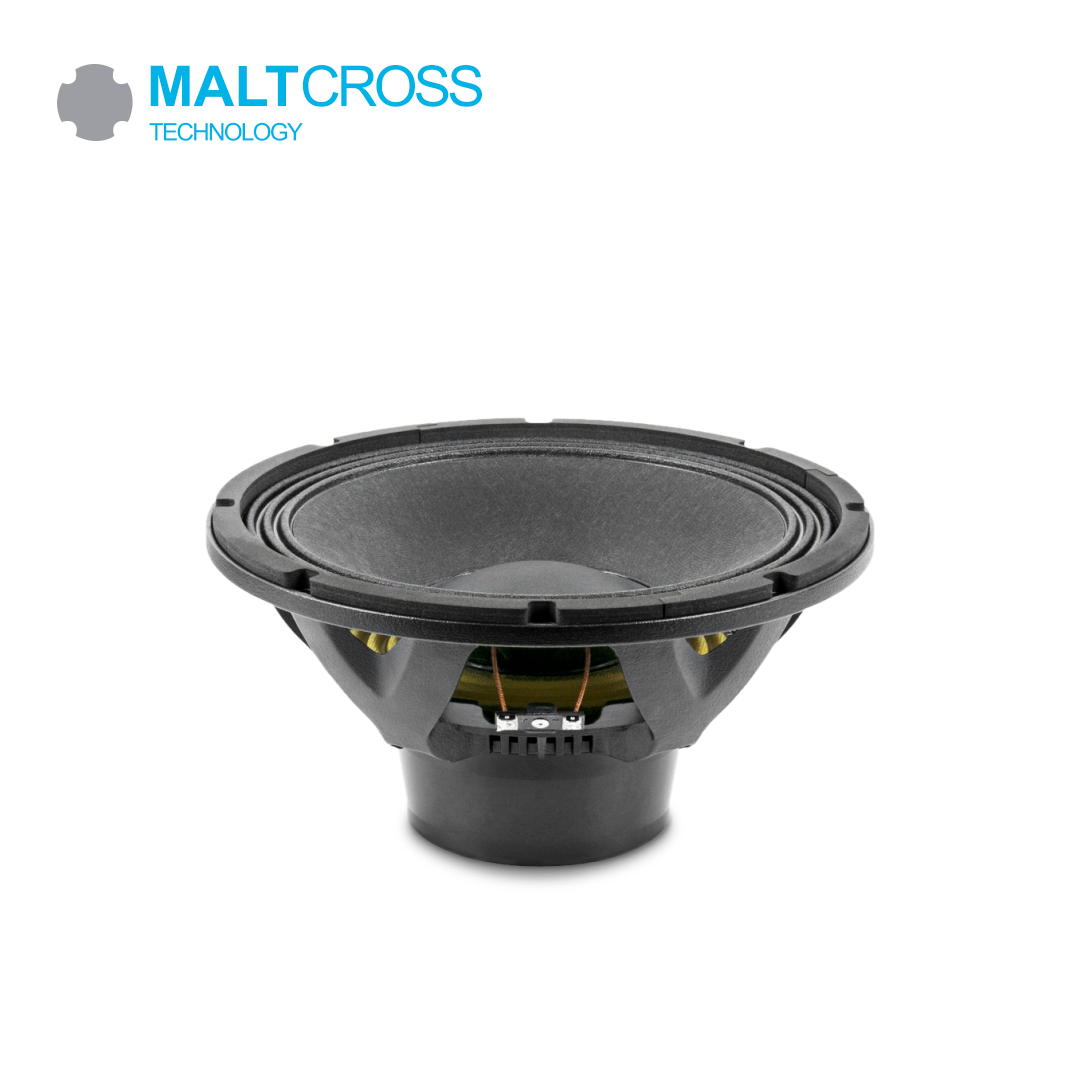

10MC700Nd PARLANTE 10″ 1400W NEODIMIO 8OHM «BEYMA»

10MC700Nd PARLANTE 10″ 1400W NEODIMIO 8OHM «BEYMA»

KEY FEATURES

• High power handling: 1.400 W program power
• Exclusive Malt Cross® Technology Cooling System
• Low power compression losses
• High sensitivity: 97 dB (1W / 1m)
• FEA optimized neodymium magnetic circuit
• Optimized non-linear behaviour
• 3” DUO double layer in/out copper voice coil
• Aluminium demodulating ring
• Weatherproof cone with treatment for both sides
• Extended controlled displacement: Xmax ± 7 mm
• 48 mm peak-to-peak excursion before damage
• Weight 3,7 kg
• Optimized for bass or mid-bass high performance audio systems

TECHNICAL SPECIFICATIONS

• Nominal diameter: 250 mm 10 in
• Rated impedance: 8 Ω
• Minimum impedance: 7,5 Ω
• Power capacity 1: 700 WAES
• Program power 2: 1.400 W
• Sensitivity: 97 dB 1W / 1m @ ZN
• Frequency range: 65 – 4.000 Hz
• Recom. enclosure: Vb = 14 l
• (Bass-reflex design): Fb = 76 Hz
• Voice coil diameter: 76,2 mm 3 in
• Bl factor: 21,8 N/A
• Moving mass: 0,054 kg
• Voice coil length: 18 mm
• Air gap height: 10 mm
• Xdamage (peak to peak): 48 mm
