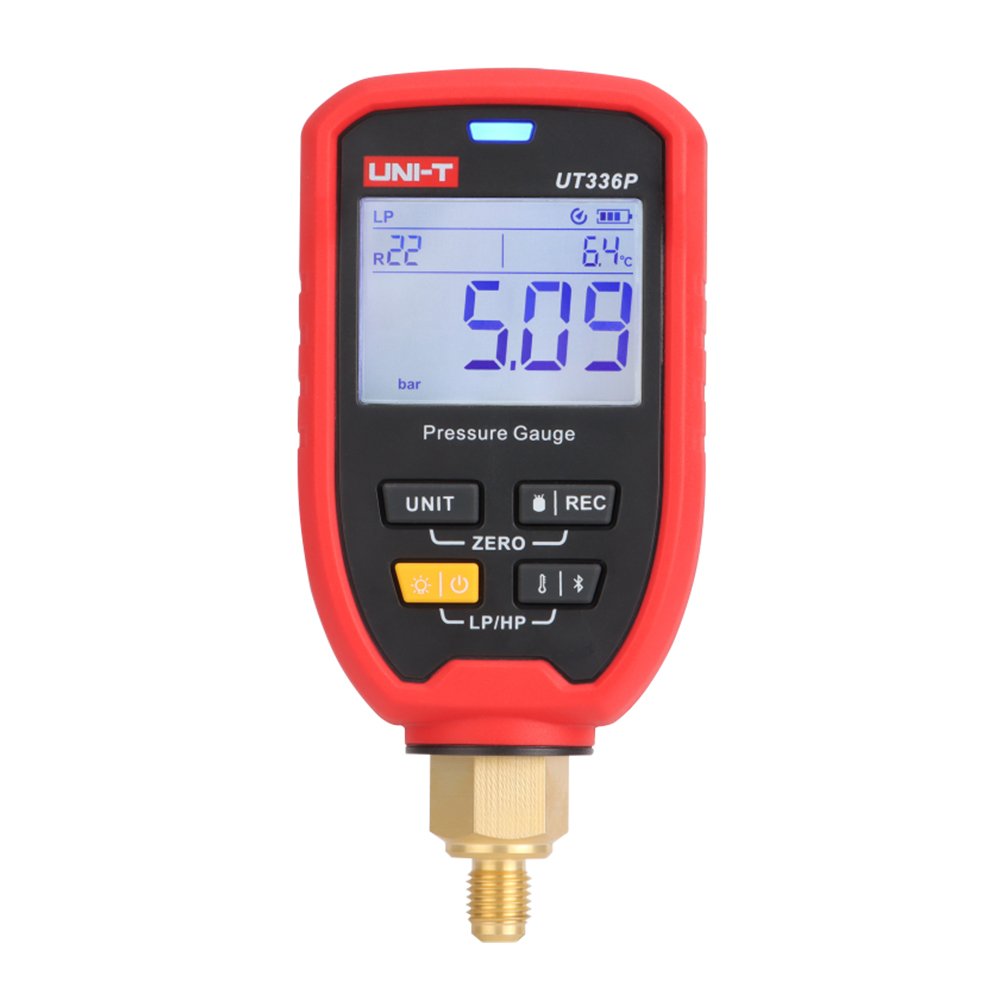

UT336P Wireless Digital Pressure Gauge «UNI-T»
Descripción
UT336P Wireless Digital Pressure Gauge «UNI-T»
| Specifications | ||
| Range/Resolution | -1 to 60bar | 0.01bar |
| -1.01 to 61.18kg/cm² | 0.01kg/cm² | |
| -75.0 to 4,500.3cmHg | 0.1cmHg | |
| -14.5 to 870.2psi | 0.1psi | |
| -29.52 to 1,771.8inHg | 0.1in/Hg | |
| -100 to 6,000kPa | 1kPa | |
| -0.100 to 6.000MPa | 0.001MPa | |
| Accuracy | ±0.5%FS | |
| Units | Pressure: Bar; kg/cm²; cmHg; psi; inHg; kPa; MPa | |
| Temperature: ℃; ℉ | ||
| Refrigerant Types | 10 types are preset (Set via APPs, total 94) | |
| Evaporating/Condensing Temperature | As per the refrigerant type | |
| High/Low Pressure Switch | ✔ | |
| Data Record | 8000 | |
| Data Record Interval | 1s~1h （APP setting） | |
| LED Indicators | Red (HP); Blue (LP); | |
| Pressure Zeroing | ✔ | |
| Screen Backlight | ✔ | |
| Phone APPs | ✔ (iENV) | |
| Auto Power Off | ✔ | |
| Firmware Upgrade | ✔ | |
| Temperature Clamp Port | 3.5 mm port | |
| Battery Life | 100h(Alkaline battery; Backlight OFF; LED ON; 1-min record interval) | |
| IP Rating | IP54 | |
| Pressure Connector | 1/4″ SAE Connector | |
| Over Range | OL（＞65bar） | |
| Working Temperature & Humidity | -10~+50℃,＜90%RH | |
| Storage Temperature & Humidity | -20~+60℃,＜80%RH | |
