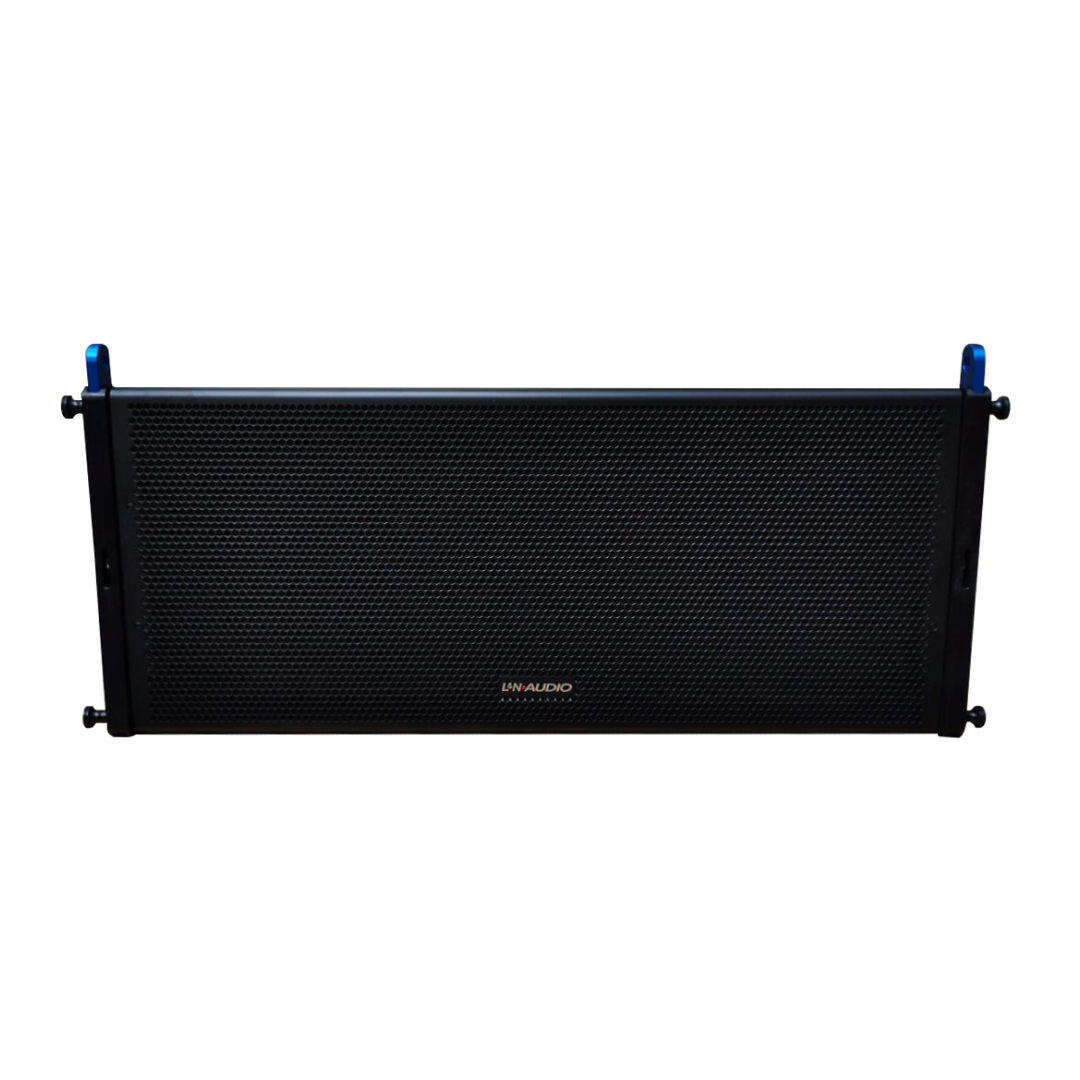

LN-RAY212A LINE ARRAY ACTIVO 2X12″ MF (CELESTION – NEODIMIO) + 2X2.5″ HF (CELESTION – NEODIMIO) C/ GERMAN DSP POWER PEAK: MF:2000W/HF:320W SPL: MF:132 dB/HF:136dB (WATERPROOF) «L&N-AUDIO»

LN-RAY212A LINE ARRAY ACTIVO 2X12″ MF (CELESTION – NEODIMIO) + 2X2.5″ HF (CELESTION – NEODIMIO) C/ GERMAN DSP POWER PEAK: MF:2000W/HF:320W SPL: MF:132 dB/HF:136dB (WATERPROOF)

ESPECIFICACIONES:

Type： Active 2-way doule 12 inch line array with DSP
Sensitivity： MF:107dB/HF:116dB
SPL： MF:132dB/HF:136dB PEAK
Frequency range： [+/-3 dB] 50 Hz -20KHz,
Dispersion angle, averaged: [H x V] 110° x 10°, single unit
Power: LF 2 x 12” 2000W PEAK HF 2x 2.5” 320W PEAK
Input sensitivity: Nominal 0 dBu
Signal input： 1 x XLR (Audio Input)
Signal output： 1 x XLR (Audio Link Out)
DSP interface： Rj45 input (EtherCon) for control using Pronet software

Amplier Technical Specications

Distoration： <0.05%
Amplifier type： Class-D
Output power： 500W+1200 W/4Ω
Operating voltage: 220-240v 50/60Hz
Power connector: Powercon® Input Powercon® Link

LN-RAY212A Dimensions:

Dimensions(W x H x D) 936 x 494x 360 mm
Weight: 42 kg
